Brian Michaels
"84" GTI: |

|
| Body Work & Paint: |
Original
paint |
| Suspension: |
Custom
designed WRD coil overs
using Koni adjustable shocks, Ground Control sleeves and Eibach racing
springs, 400 rate in front and 350 rate in rear
Prothan total kit urethane bushings |
| Wheels & Tires |
Zender 15" Wheels |
| Brakes: |
11" Corrado Front and Disc
Conversion
Eurospec cross drilled &
slotted rotors
Goodrige stainless steel brake lines |

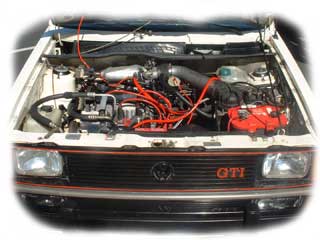

| Motor: |
7300 rev limit
Max power at 6800.
(approx. 165-175hp)
Techtonics Tuning exhaust W/High
Flow Cat
Dual Down Pipe & Manifold |
| Block: |
Blueprinted
1984 c.c 236mm deck height
10.8:1 compression (requires only
92 to 96 octane
fuel)
Oil squatters
Late oil filter flange
1.8ltr. mechanical oil pump
(modified for 92.8mm
stroke)
Forged crankshaft
16v crank case vent
5 qt. oil pan and windage tray
Aluminum valve cover |
| Head: |
Late
style low friction design (three bearing caps)
2.0 ltr. originally carburated
(initially higher
flow levels)
Drilled for CIS type injectors
Std. mechanical lifters
Intake 40mm Exhaust 33mm
Ported and polished
Super Flow Bench tested: 168 CFM
intake @ .470"
Super Flow Bench tested: 110 CFM
exhaust @ .470"
Tapered valve guides
Five angle seats w/ I.D. increased
Polished combustion chambers
(valves fully unshrouded)
Web Cam valve springs
Cam clearanced for high lift
camshafts
Shrick 306 degree grind
camshaft |
| Interior: |
All original. |
| Transmission: |
02J six speed
Short shift
Corrado lightened flywheel
VR6 clutch
WRD conversion mounts |
| Car Stereo: |
Alpine head unit
Boston Acoustic 3.5 inch 2 ways up front
Kenwood 4 X 10 in back
JBL GT series 10 inch Sub in JBL tube
Rockford Fosgate 400S Amp |
